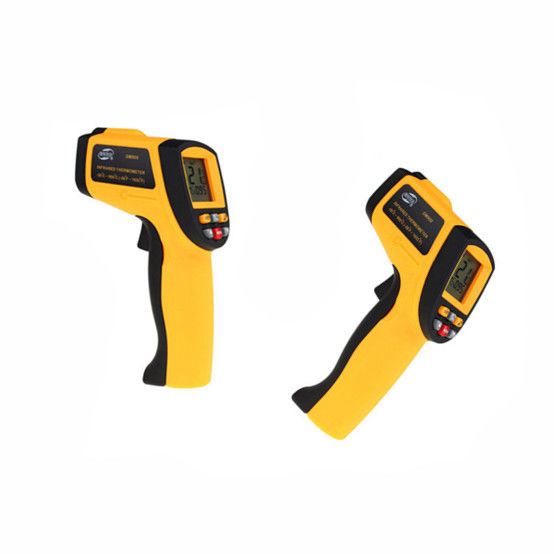

Handheld infrared thermometer with LCD display
Infrared thermometer consists of optical system, photoelectric detector, signal amplifier and signal processing, display output and other components. The optical system converges the target infrared radiation energy in the field of view, and the size of the field of view is determined by the optical part of the thermometer and its position. Infrared energy is focused on the photodetector and converted to the corresponding electrical signal. The signal through the amplifier and signal processing circuit, and in accordance with the instrument within the treatment of the algorithm and the target emissivity correction into the measured target temperature value.
Fearures of Handheld infrared thermometer with LCD display:
Average and temperature measurements
Maximum / minimum measurement
High and low temperature alarm setting function
Measurement data storage
Celsius Fahrenheit Unit Conversion
Data Hold
Laser positioning function
Backlit display
Auto power off function
Low battery indicator
Model Specification :GM700 GM1150
Temperature range -50 °C ~ 700 °--58 ° F ~ 1292 ° F C50 °C ~ 1150 °C -58 ° F ~ F
Temperature measurement accuracy :± 1.5% or ± 1.5 °C
Measure the distance ratio :12:1
Emissivity :Continuously adjustable from 0.10 to 1.00
Resolution :0.1 °C or0.1 ° F (<1000 °C)
Response Time & Wavelength :500ms & (8-14) um
Repeatability :± 1% or ± 1 °CPower :9-volt alkaline battery
LCD Size :28.5 * 26.5mm
Color :Yellow + Black
NW :132g
Size :146 * 80 * 38mm
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Heacstar considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
China CEAC Products Co., Ltd. is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
